Unlocked ZTE MC801A 5G / 4G WiFi 6 CPE Router - SIM Card Slot

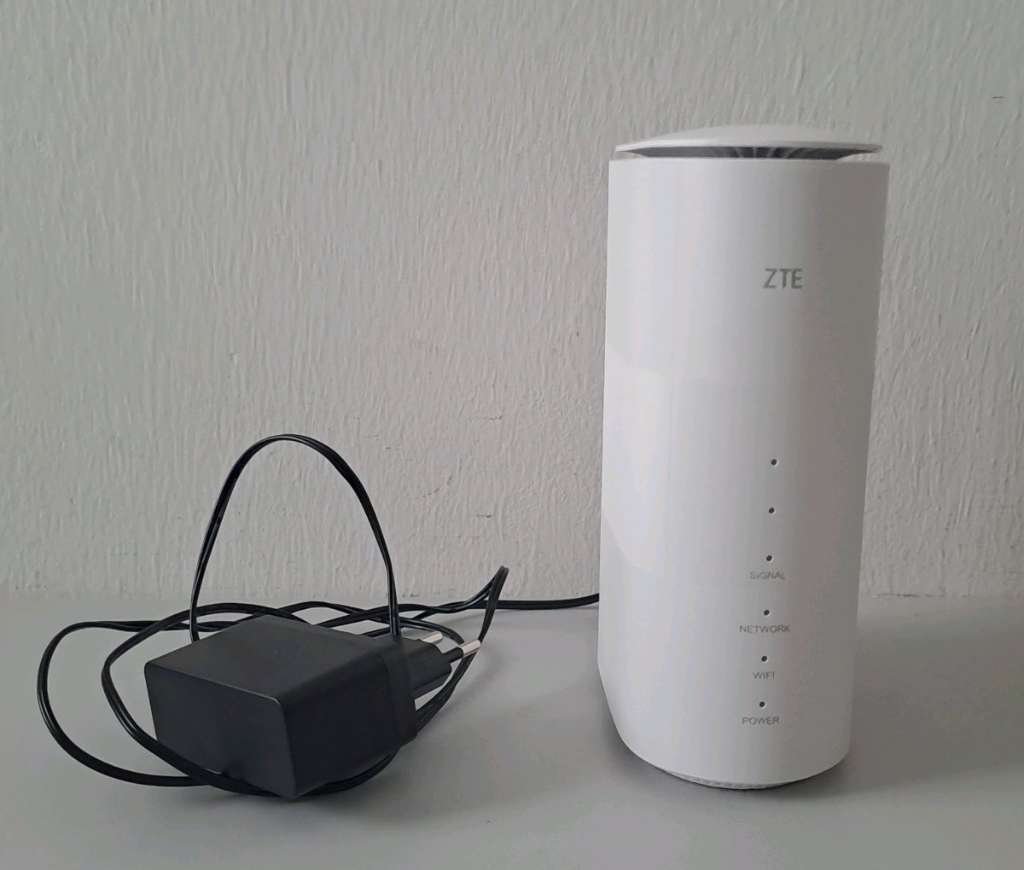

ZTE MC801A 5G Indoor Wi-Fi Router

ZTE MC801A is a 5G Indoor WiFi router supporting the latest Wi-Fi 6 access technology, allowing multiple users to access the 5G network at the same time. ZTE 5G Indoor CPE MC801A supports both NSA & SA 5G Networks, compatible with mainstream 4G and 5G standards. The device enables consumers to enjoy the advantages of ultra-fast 5G networks and 5G services, including immersive streaming, gaming and entertainment experience through virtual reality, augmented reality and 3D technologies.

Specifications:

•  Category: 5G Router
•  Communication Standard: 3GPP Release 15
•  Chipset: Qualcomm 5G SDX55M
•  CPU: Cortex A7 up to 1.4GHz

Supported networks

•  Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
•  Network frequencies: 5G: 41/77/78/79
•  Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8

Data rate speeds

•  5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
•  LTE Category: 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
•  WCDMA: DC (up to 42Mbit/s)
•  Modulation: DL 256QAM, UL 64QAM
•  Wi-Fi: 802: 11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
•  WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
•  WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
•  WLAN encryption standards: WPA, WPA2, WPS
• Support up to 30 WiFi users simultaneously
•  Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)

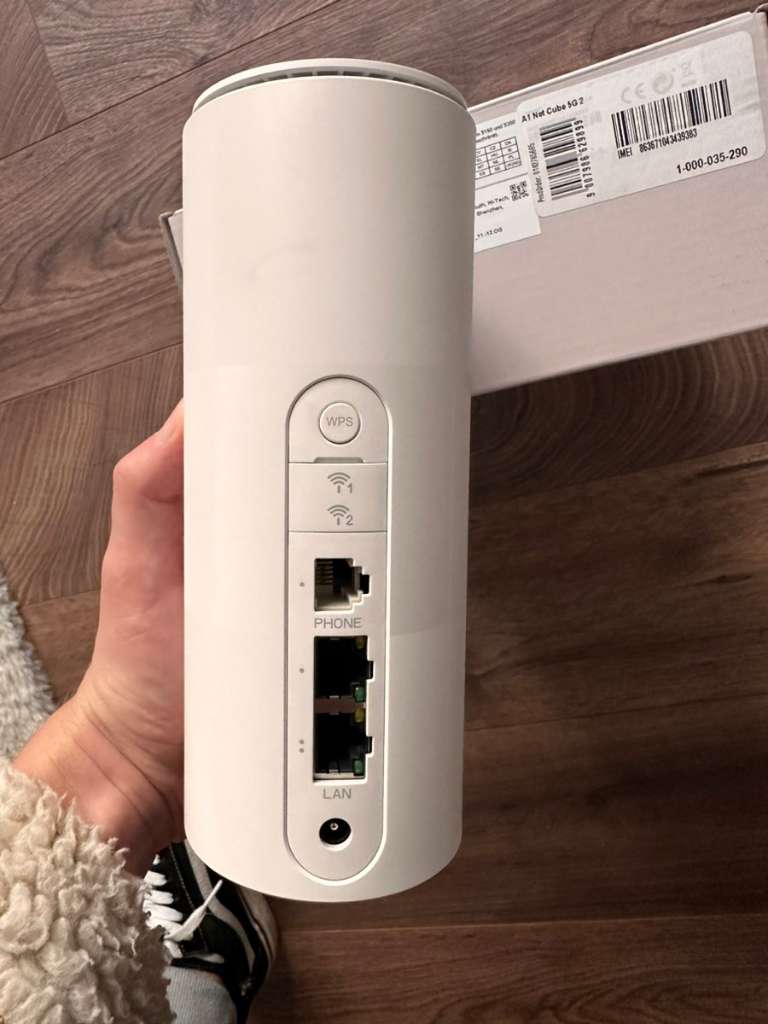

Interface

•  SIM card slot: (NANO SIM) x 1
•  Tel port: (RJ11) x 1 (CSFB)
• WAN/LAN GE port x 1
• 1GE port(RJ45) x 1
• DC port x 1
